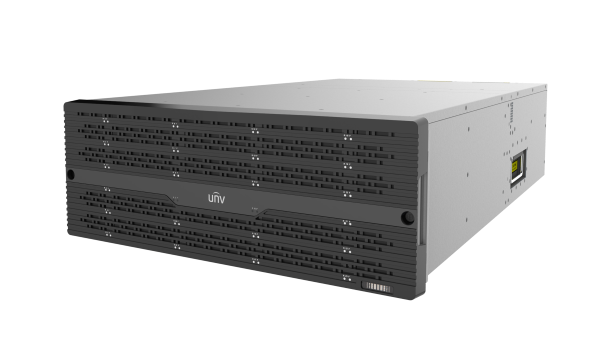

DE1848-V2@P
48 HDD Network Storage Expand Enclosure
- High-Quality Hardware Design
- high performance
- 12Gbps SAS-3 technology provides superior performance experience
- High density
- The innovative enclosure with 801mm depth and4U height that holds up to 48 disks, is space-saving .
- Redundant power supplies
- The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.
- Power protection
- Disk powered on sequentially during system startup, protection from impulse current.
- Multistage fan speed and energy saving
- Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
Module
Controller number
1
Power Consumption
640W
Power Supply
100V – 127V/200V – 240V ACï¼60Hz/50Hz
Weight
Fully loadedï¼<= 68kg
Dimension
178mmX 482mm X801mm Noteï¼for standard cabinet with 1000mm depth or above
Authentication certificate
CE, FCC, CBï¼RoHS, WEEE
Operating temperature
5°C ~ 40°C / 41°F ~ 104°F
Interface
HDD slot
48
Serial port
1
Back-end Expansion Interface
2-port 4x12GbpsMini SAS HD
