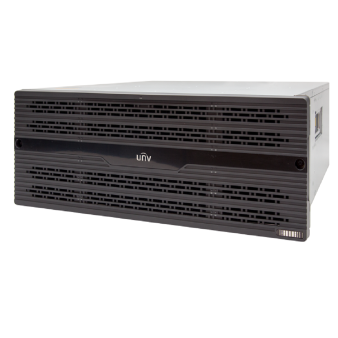

DE3124-V2
24 Disk Slots Network Storage Disk Enclosure Unit
- High-Quality Hardware Design
- high performance
- 12Gbps SAS-3 technology provides superior performance experience
- High density
- The innovative enclosure with 589mm depth and 4U height that holds up to 24 disks, is space-saving
- Redundant power supplies
- The hot-swappable power supply is designed in redundancy and load balancing mode. Automatic power switching in case of failure and online replacement of failed power supply are supported.
- Power protection
- Disk powered on sequentially during system startup, protection from impulse current.
- Multistage fan speed and energy saving
- Fans with multistage speed are configured in the hot-swappable frame in redundancy mode. System power consumption can be balanced intelligently with heat dissipation calculation to ensure low power consumption and stable operation of the system.
Module
Controller number
2
Power Consumption
270W (fully loaded)
Power Supply
100V – 127V/200V – 240V ACï¼60Hz/50Hz
Weight
Fully loadedï¼< 40kg
Dimension
482.0mm × 589.0mm × 175.0 mm
Authentication certificate
CE, FCC, CBï¼RoHS, WEEE
Operating temperature
5°C ~ 40°C / 41°F ~ 104°F
Interface
HDD slot
24
Serial port
2
Back-end Expansion Interface
4-port 4*12Gbps Mini SAS HDï¼Primaryï¼ 4-port 2*12Gbps Mini SAS HDï¼Backupï¼
