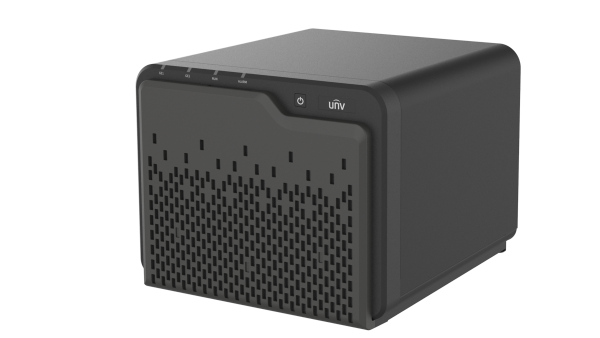

DX204

4 Hard Disk Desktop NAS(4GB)
  • Supports snapshot, offers effective protection for important data against crypto ransomware.
  • Supports high-level data security, AES enterprise-grade encryption, SSL security certificates, and disaster recovery protection.
  • Supports log management, allows user to view file access logs.
  • Supports multiple file sharing protocols including ISCSI, NFS, AFP, SMB, FTP, WEBDAV.
  • Supports flexible permission management and multi-layer protection mechanism.
  • Supports smart O&M, advanced device and HDD health monitoring, alert users of potential risks of data loss.
  • Supports RAID technology, allows the configuration of one or more backup HDDs.
  • High-speed transmission, supports 10Gigabit network interface card.

Module
OS
Embedded Linux
CPU
Intel quad-core X86_64 processor
RAM
4GB DDR4, dual SO-DIMM slots, expandable to 32GB
HDD
4 * SATA3.0 slots, compatible with 3.5-inch or 2.5-inch SATA HDD/SSD
Network interface
2*GE, 1*PCIe 3.0 for expansion to 10Gigabit network
HDMI
1*HDMI 2.0, resolution up to 4096 x 2160@60Hz
USB
2*USB3.0
M.2 HDD slot
2 (NVMe), with one slot supporting SATA3.0
EMMC
8GB (standard)
Dimensions
226mm (L) × 246mm (W) × 186mm (H)
Weight
3.6 kg (without HDD)
Power consumption
33W (with HDD fully configured)
Noise
Room temperature 25°C≤31dB(A) Within the environment’s highest specified limit ≤39.4dB(A) (low power operation mode)
Operating temperature
0°C to +45°C
Storage temperature
-20°C to +70°C
Storage humidity
5% to 95% (non-condensing)
Operating humidity
5% to 95% (non-condensing)
Function
Access protocol
Supports Onvif cameras
Performance
Video storage performance
64*2Mbps
