KIT/NVR301-08S4-LW/8*IPC2122LB-AF28WK-WF

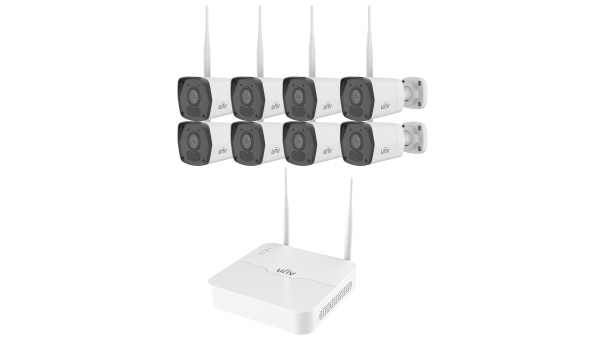

1 Hard Disk 8-Channel NVR Kit(WiFi,Including 8 PCS Mini Bullet Camera)
- High quality image with 2MP, 1/3.0" CMOS sensor
- 2MP (1920*1080)@25fps; 720P (1280*720)@25fps
- Ultra 265, H.265, H.264
- Built in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 512 G Micro SD card
- IP67 protection
- 3 Axis
Camera
Max Resolution
2 MP
Sensor
1/3.0" CMOS
Min. Illumination
Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 to 1/100000 s
Adjustment Angle
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N
> 52 dB
WDR
DWDR
Lens
Focal Length
2.8 mm
Iris Type
Fixed
Iris
F2.0
Field of View (H)
94.0°
Field of View (V)
52.4°
Field of View (D)
106.5°
Lens Type
Fixed
DORI
DORI Distance (Lens)
2.8 mm
DORI Distance (Detect)
46.7 m (153.1 ft)
DORI Distance (Observe)
18.7 m (61.4 ft)
DORI Distance (Recognize)
9.3 m (30.6 ft)
DORI Distance (Identify)
4.7 m (15.4 ft)
Illuminator
Supplemental Light
IR
Illumination Distance (IR)
30 m (98.4 ft)
Wavelength
850 nm
IR On/Off Control
Auto/Manual
Video
Video Compression
Ultra 265, H.265, H.264
H.264 Code Profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 1080P (1920 × 1080), max. 25 fps; 720P (1280 × 720), max. 25 fps Sub Stream: 640 × 360, max. 25 fps; 2CIF (704 × 288), max. 25 fps; CIF (352 × 288), max. 25 fps
Video Bit Rate
128 Kbps to 2048 Kbps
U-code
Support
OSD
Up to 2 OSDs
Privacy Mask
Support (only NVR)
ROI
Up to 8 areas
Video Stream
Dual streams
White Balance
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction
2D/3D DNR
Smart IR
Support
Flip
Normal, Flip vertical, Flip horizontal, 180°
Dewarping
N/A
HLC
N/A
BLC
Support
Defog
Digital defog
Events
Basic Detection
Ultra motion detection (motion/ human/ vehicle detection)
General Function
IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression
G.711U, G.711A
Audio Bitrate
64 Kbps
Two-way Audio
N/A
Suppression
Support
Sampling Rate
8 kHz
Storage
Edge Storage
MicroSD, up to 512 GB
Network Storage
ANR
Network
Protocols
IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration
API, SDK
User/Host
Up to 32 users. 2 user levels: administrator and common user
Security
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2
Client
EZStation, APP
Web Browser
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi-Fi
Wireless Standards
IEEE802.11b/g/n/ax
Frequency Range
2.4 GHz to 2.4835 GHz
Channel Bandwidth
20/40 MHz Support
Modulation Mode
802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA
Wi-Fi Security
64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power
802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity
802.11b: -76 dBm@11 Mbps (Typical)802.11g: -65 dBm@54Mbps (Typical)802.11n: -61 dBm@MCS7, HT40 (Typical)802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate
802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps
Interface
Audio I/O
N/A
Alarm I/O
N/A
Serial Port
N/A
Built-in Mic
Support
Built-in Speaker
N/A
WIFI
Support
Network
1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output
N/A
Certification
EMC
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
RF
FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety
CE LVD (EN 62368-1)
Environment
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection
IP67 (IEC 60529)
General
Power
DC 12 V±25%
Power Consumption
Max. 3.5 W
Power Interface
Ã5.5 mm coaxial power plug
Dimensions
160 mm × 76 mm × 72 mm (6.3" × 3.0" × 2.8") (L × W × H)
Weight
0.25 kg (0.55 lb)
Material
Metal + Plastic
Storage Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment
-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
LED Indicator
1, red/green
Surge Protection
4 KV
Reset Button
Support
Web Client Language
1 Language: English
