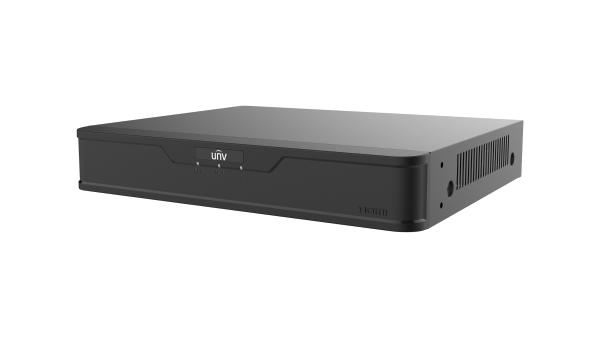

NVR301-08E-IQ
1 HDD 8-ch 1U Network Video Recorder
- Support Ultra H.265/H.265/H.264 video formats
- Support 8-channel input
- Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
- Support HDMI and VGA simultaneous output
- Support up to 12 Megapixels resolution recording
- Support SeekFree function: up to 8-ch with UNV Face/SIP/UMD IPC
- Support ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Decoding
Decoding Capability
Smart Offï¼1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart Onï¼2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30
Decoding Capability Description
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio Compression
G.711A, G.711U
Network
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
Max Users Can Be Added
32
Remote Users
128
Protocols
TCP/IP, P2P, SMTP, NFS, RTSP, UPnP, NTP, DHCP, PPPoE, DNS, HTTP, DDNS, IPv6, IPv4, HTTPS
Browser (Plugin)
Chrome 45+, Edge 79+, Firefox 52+
Browser (Plugin-Free)
Chrome 57+, Edge 16+, Firefox 58+, Safari 11+
Video/Audio Input
IP Video Input
8-ch
RCA Audio Input
1-ch
Peripheral Input
Ip Speaker
16-ch
POS
All channels
Video/Audio Output
Video Output
Support 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output
HDMI Output
4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz
VGA Output
1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1280 × 720/60 Hz
HDMI Standard
HDMI1.4
RCA Audio Output
1-ch
Liveview Display
1/4/6/8/9
Default Num of Live Screen
9
Corridor Mode Screen
3/4/5/7/9
Playback Screen
1/4/9
Corridor Mode Screen of Playback
1/3
Two-way Audio
Two-way Audio
1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot
N/A
Recording
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback
16-ch
Synchronous Playback in Local
8-ch
Smart
Smart by IPC
All channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring
Smart by NVR
Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
Smart by NVR Analyzer Mode
Single Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time.
VCA Search
Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
by NVR
Up to 4-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)
Search by Image
Support
Vehicle Picture Library
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal cameras
Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP)
UMD by NVR with normal cameras
Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)
Capacity of Snapshot Records
500 thousand records for face snapshot, 500 thousand records for vehicle snapshot, 500 thousand records for SIP
Alarm
General Alarm
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection, Alarm Input
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA
1 SATA Interface
Capacity
Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
External Interface
Network Interface
1 RJ45 10 M/100 M self-adaptive Ethernet Interface
Network Working Mode
Single port, not involved
USB
Rear panel: 2 × USB2.0
Alarm In
4-ch
Alarm Out
1-ch
Buzzer
Support
Power Supply
DC 12 V/2 A
Working Environment
Working Temperature
-10 ℃ to 50 ℃ (14 ℉ to 122 ℉)
Working Humidity
≤ 95% RH (non-condensing)
Power Consumption (without HDD)
≤ 15W
Heat Dissipation
Radiator
Dimensions
Weight (without HDD)
≤ 0.98Kg (2.17lb)
Height
1U
Dimensions
260mm x 215mm x 46.6mm (10.2"×8.5"×1.8")
Certification
Certification
CE; FCC; UL; RoHS; WEEE
CE
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130
FCC
Part15 Subpart B
