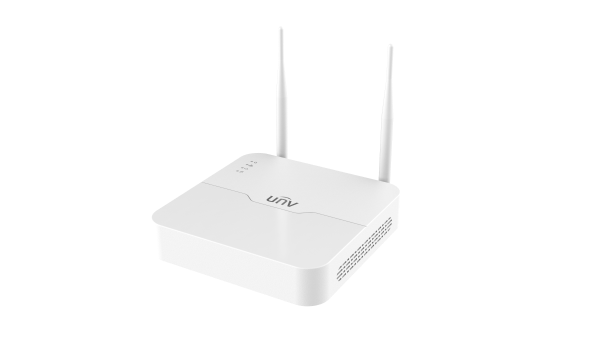

NVR301-08S4-LW
1 Hdd 8-Ch WIFI Network Video Recorder
- 8-channel input
- Up to 8MP resolution recording
- Embedded WiFi Module with high-performance and high stability
- Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
- Support Ultra 265/H.265/H.264 video formats
- Support 1-ch HDMI, 1-ch VGA
- Support cloud upgrade
- Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T ) and RTSP protocols
- 1 SATA HDD, Up to 10TB for each HDD
Decoding
Decoding Format
Ultra 265, H.265, H.264
Decoding Capability
1 x 8MP@30, 2 x 5MP@25, 3 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30
Decoding Capability Description
The resolution of each channel cannot exceed 3840 pixels in length and 2160 pixels in width
Audio Compression
G.711A, G.711U
Network
Incoming Bandwidth
64 Mbps
Outgoing Bandwidth
48 Mbps
Max Users Can Be Added
32
Remote Users
128
Protocols
TCP/IP, P2P, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, IPv4
Browser (Plugin)
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input
8-ch
Video/Audio Output
Video Output
Support 1-ch HDMI, 1-ch VGA, HDMI and VGA simultaneous output
HDMI Output
4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output
1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
HDMI Standard
HDMI2.0
3.5mm Audio Output
1-ch
Liveview Display
1/4/6/8/9
Default Num of Live Screen
9
Corridor Mode Screen
3/4/5/7/9
Playback Screen
1/4/9
Two-way Audio
Two-way Audio
N/A
Snapshot
FTP/Schedule/Event Snapshot
1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback
16-ch
Synchronous Playback in Local
8-ch
Smart
VCA Detection by IPC
Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search
Behavior Search
Smart by IPC
Total 4-ch(Face Detection, SIP, UMD)
Capacity of Snapshot Records
2 millions records for SIP
Alarm
General Alarm
Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language
21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Hard Disk
SATA
1 SATA Interface
Capacity
Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 35°C)
External Interface
Network Interface
1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB
Rear panel: 2 × USB2.0
RS485
N/A
RS232
N/A
Alarm In
N/A
Alarm Out
N/A
Buzzer
Support
Power Supply
DC 12 V/2 A
WiFi
Frequency
2.4 GHz
Transmission Rate
150 Mbps
Wireless Standards
IEEE 802.11b/g/n, IEEE 802.11ax
Working Environment
Working Temperature
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity
≤ 90% RH (non-condensing)
Power Consumption (without HDD)
<12W
Heat Dissipation
Radiator
Dimensions
Weight (without HDD)
≤0.6Kg (1.32lb)
Height
1U
Dimensions
205mm*205mm*45.6mm
Certification
Certification
CE; FCC; UL; RoHS; WEEE
CE
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130
FCC
Part15 Subpart B
Compliance
NDAA Compliant
Support
