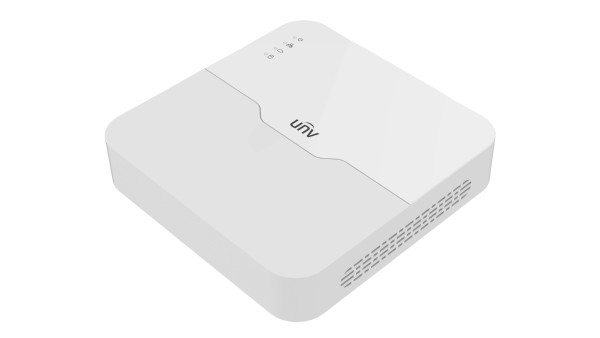

NVR301-LS3-P series
1 HDD 4-ch 4 PoE 1U Network Video Recorder
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16-channel input
- Plug & Play with 4/8 independent PoE network interfaces
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 4K resolution recording
- Support cloud upgrade
Decoding
Decoding Format
Ultra 265, H.265, H.264, Ultra 265, H.265, H.264, Ultra 265, H.265, H.264
Decoding Capability
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 16 x D1@25
Decoding Capability Description
The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width, The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width, The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio Compression
G.711A, G.711U, G.711A, G.711U, G.711A, G.711U
Network
Incoming Bandwidth
64 Mbps, 64 Mbps, 64 Mbps
Outgoing Bandwidth
48 Mbps, 48 Mbps, 48 Mbps
Remote Users
128, 128, 128
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4, TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4, TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+, IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+, IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input
4-ch, 8-ch, 16-ch
Video/Audio Output
HDMI Output
4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output
1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output
1-ch, 1-ch, 1-ch
Liveview Display
1/4, 1/4/6/8/9, 1/4/6/8/9/16
Corridor Mode Screen
3/4, 3/4/5/7/9, 3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot
1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution), 1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution), 1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Recording
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF, 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF, 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local
4-ch, 8-ch, 16-ch
Smart
Smart by IPC
Total 4-ch(Face Detection, SIP, UMD), Total 4-ch(Face Detection, SIP, UMD), Total 4-ch(Face Detection, SIP, UMD)
VCA Search
Behavior Search, Behavior Search, Behavior Search
Alarm
General Alarm
Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language
21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Hard Disk
SATA
1 SATA Interface, 1 SATA Interface, 1 SATA Interface
Capacity
Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size), Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size), Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
External Interface
Network Interface
1 RJ45 10 M/100 M self-adaptive Ethernet Interface, 1 RJ45 10 M/100 M self-adaptive Ethernet Interface, 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB
Rear panel: 2 × USB2.0, Rear panel: 2 × USB2.0, Rear panel: 2 × USB2.0
RS485
N/A, N/A, N/A
RS232
N/A, N/A, N/A
Alarm In
N/A, N/A, N/A
Alarm Out
N/A, N/A, N/A
Power Supply
DC 48 V/1.35 A, DC 52 V/1.8 A, DC 52 V/1.8 A
PoE
PoE Interface
4 RJ45 10 M/100 M self-adaptive Ethernet Interface, 8 RJ45 10 M/100 M self-adaptive Ethernet Interface, 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power
Max 30 W for single port, Max 54 W in total, Max 30 W for single port, Max 75 W in total, Max 30 W for single port, Max 75 W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af, IEEE 802.3at, IEEE 802.3af, IEEE 802.3at, IEEE 802.3af
Working Environment
Working Temperature
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉), -10 ℃ to 55 ℃ (14 ℉ to 131 ℉), -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Working Humidity
≤ 90% RH (non-condensing), ≤ 90% RH (non-condensing), ≤ 90% RH (non-condensing)
Power Consumption (without HDD)
≤ 9W, ≤ 9W, ≤ 9W
Dimensions
Weight (without HDD)
≤ 0.6Kg (1.32lb), ≤ 0.8Kg (1.76lb), ≤ 0.8Kg (1.76lb)
Dimensions
205mm × 205mm × 46mm (8.1"×8.1"×1.8"), 270mm × 205mm × 46mm (10.6"×8.1"×1.8"), 270mm × 205mm × 46mm (10.6"×8.1"×1.8")
Certification
Certification
CE; FCC; UL; RoHS; WEEE, CE; FCC; UL; RoHS; WEEE, CE; FCC; UL; RoHS; WEEE
CE
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035, EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035, EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC
Part15 Subpart B, Part15 Subpart B, Part15 Subpart B
